On July 17, 2025, our new scientific article titled “High-vacuum measuring system for accurate characterization of thermoelectric cooling modules“ was published in the international journal Applied Thermal Engineering (Elsevier).
This work stems from the awareness that, to date, the literature lacks a standardized characterization procedure for Peltier modules that can account for the variety of their real-world applications.
Scientific goal
Peltier modules, also known as TEC (Thermoelectric Coolers), are compact, silent, and solid-state devices widely used for cooling electronic components, biomedical devices, and aerospace systems. However, their experimental characterization is often limited by thermal losses and measurement uncertainties.
To address this, we developed a dedicated measuring station that replaces conventional solid-state insulators with high-vacuum thermal insulation, significantly reducing conductive and convective losses through air.
This approach enables more accurate measurements of the cooling power delivered by TEC modules, even under operating conditions that differ from those specified in commercial datasheets.

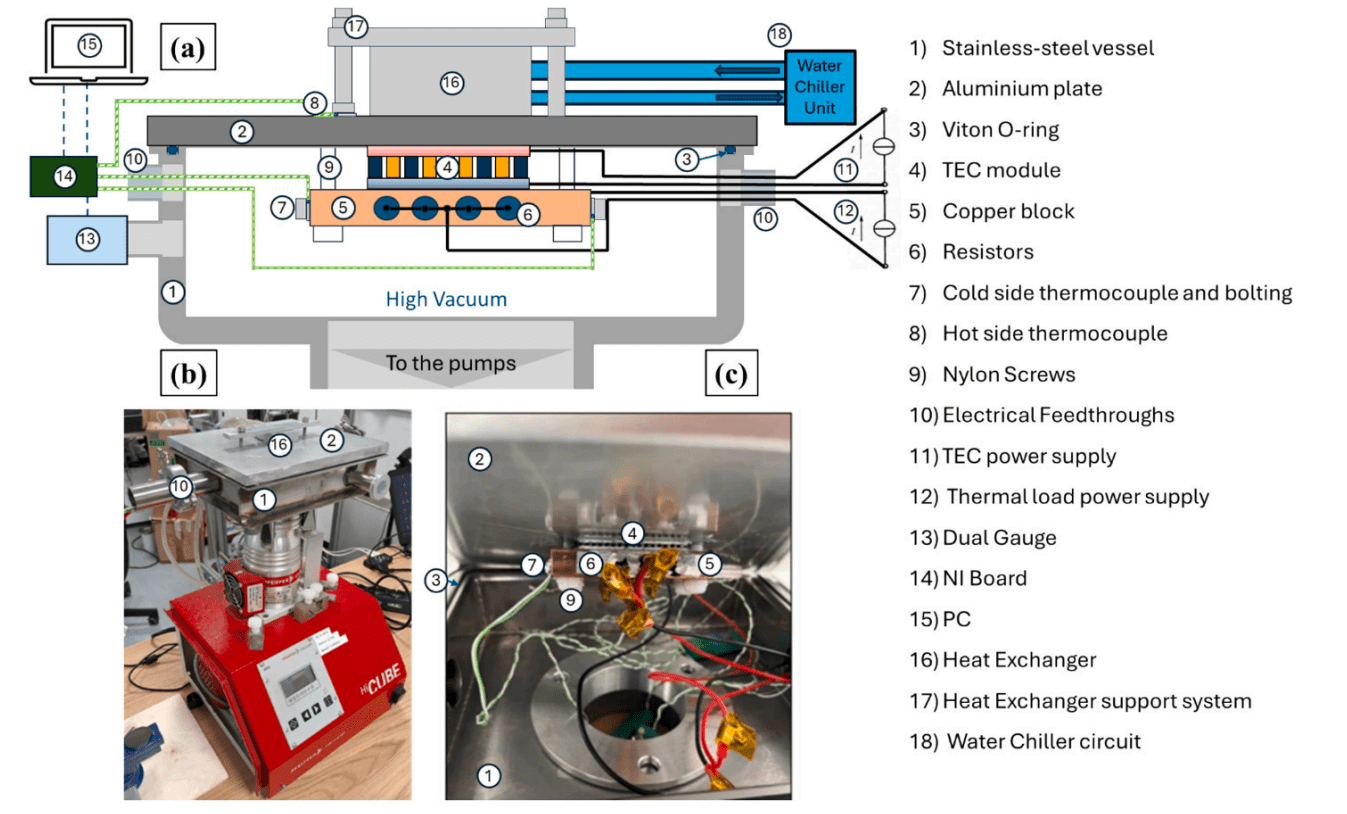

(b) External view of the vacuum chamber linked to the pumps.
(c) Internal view of the vacuum chamber with the detail of the copper holder and of the TEC module.
Key results
- The setup enables accurate characterization of TEC modules, with an uncertainty of ±0.10 W.
- Tests were conducted on a commercial 20×20 mm² module, under both ambient and high-vacuum conditions (10⁻⁵ mbar).
- Experimental results under vacuum showed excellent agreement with manufacturer data up to ΔT = 20 °C. Deviations at higher temperature differences were quantitatively attributed to external effects, such as heat conduction through screws and wires, and thermal radiation.
- The characterization system is versatile and adaptable, requiring no custom configuration for different modules, and is suitable for a wide range of geometries and power levels.
This work fills a methodological gap in the literature on the experimental characterization of thermoelectric modules, offering a reproducible, flexible, and high-precision platform.
The results are particularly relevant for optimizing TEC-based cooling systems in fields that require high thermal stability, such as photonics, aerospace, and biomedical applications.
📄 Full Reference:
Capolupo F., P. Strazzullo, D’Alessandro C., Musto M., Russo R. (2025). High-vacuum measuring system for accurate characterization of thermoelectric cooling modules. Applied Thermal Engineering, Vol. 279, 127615.
https://doi.org/10.1016/j.applthermaleng.2025.127615
